Brand Name : JDI
Model Number : LPM213M429B
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LPM213M429B
Diagonal Size : 21.3"
Panel Type : LTPS TFT-LCD, LCM
Resolution : 2048(LCR)×2560 153PPI
Pixel Format : LCR Vertical Stripe
Active Area : 337.92(W)×422.4(H) mm
Used for : Medical Imaging
Touchscreen : Without
LPM213M429B 21.3 inch LVDS lcd panel lcd screen Parts
LPM213M429B LCD Panel Product details :
| Brand | JDI |
| Model P/N | LPM213M429B |
| Diagonal Size | 21.3" |
| Panel Type | LTPS TFT-LCD, LCM |
| Resolution | 2048(LCR)×2560 153PPI |
| Pixel Format | LCR Vertical Stripe |
| Active Area | 337.92(W)×422.4(H) mm |
| Bezel Opening | - |
| Outline(mm) | 349 × 443 (H×V×D) |
| Treatment | - |
| Luminance | 2500 cd/m² (Typ.) |
| Contrast Ratio | 1700 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (Min.)(CR≥50) |
| Response | 12 (Typ.)(G to G) ms |
| Good View at | Symmetry |
| Work Mode | IPS NEO, Normally Black, Transmissive |
| Color Depth | Grayscale |
| Backlight | WLED, With LED Driver |
| Mass | 2.50Kgs (Typ.) |
| Used for | Medical Imaging |
| Refresh Rate | 50Hz |
| Touchscreen | Without |
| Signal Type | LVDS (4 ch, 10-bit) |
| Voltage Supply | 12.0V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 60 °C |
| LPM213M429B 21.3 inch LVDS lcd panel lcd screen Parts | |
LPM213M429B LCD Panel Shipping and Package :

LPM213M429B LCD Panel FAQ :
Q: Why big order delivery time are long?
A: All the lcd panel are Strictly tested before shipment , to ensure that you receive good quality lcd panel and work well!
Q: Are you manufactory or trade company?
A: We are a Trade Company , We are LCD panel professional distributors ,We have own warehouse and inventory. Our goal is to provide our customers with the best products.
Q: Can you declared low value for my order when shipping?
A: Yes, We can do it for you if you need.
Q: How to do if I can't find the screen that I require in your listings?
A: We should have it in stock , please contact us directly.if we dont't have it , we can try our best to find it for you .
|
|

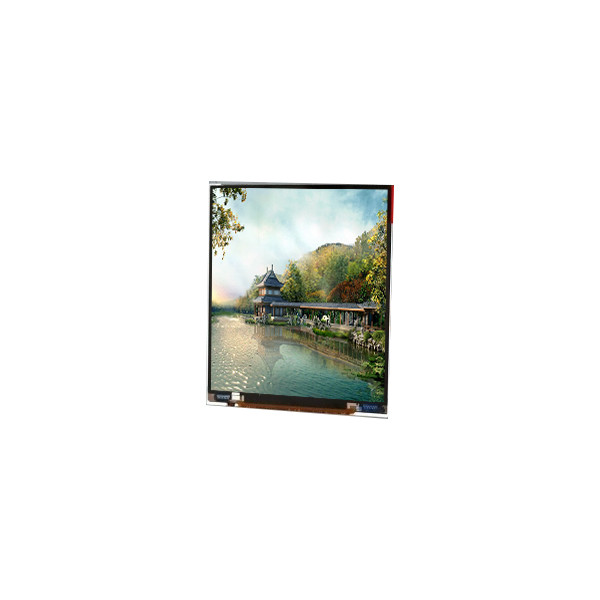

LPM213M429B 21.3 inch LVDS lcd panel lcd screen Parts Images |
