Brand Name : TOSHIBA
Model Number : TFD58W26MW
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : TFD58W26MW
Diagonal Size : 5.8"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 400(RGB)×234 80PPI
Pixel Format : RGB Vertical Stripe
Active Area : 127.2(W)×71.8(H) mm
Designed For : Industrial
Backlight : 1 pcsCCFL
TFD58W26MW 5.8 inch 400*234 TFT-LCD Screen Panel
TFD58W26MW LCD Panel Product details :
| Brand | Toshiba Matsushita |
| Model P/N | TFD58W26MW |
| Diagonal Size | 5.8" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 400(RGB)×234, WQVGA 80PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 127.2(W)×71.8(H) mm |
| Bezel Opening | - |
| Outline(mm) | 145 × 89 (H×V×D) |
| Treatment | - |
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 350 : 1 (Min.) (TM) |
| Viewing Angle | 55/55/30/60 (Typ.)(CR≥10) |
| Response | 20/40 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | Full color |
| Backlight | 1 pcsCCFL |
| Mass | 200g |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | Analog |
| Max. Ratings | - Operating Temp.: -20 ~ 60 °C |
| TFD58W26MW 5.8 inch 400*234 TFT-LCD Screen Panel | |
TFD58W26MW LCD Panel Shipping and Package :

Q: What does "We may ship a 100% compatible part number for your screen" mean?
A: Because some original screens are not available in the market , So we send the compatible item to you .Don't worry , it is 100% compatible for your screen
Q: Do you accept the sample order?
A: Yes , sample order is welcome.
Q: How long will I receive my goods of lcd TFD58W26MW ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX/UPS/TNT.
Q: When will my order TFD58W26MW ship?
A: The order are shipped within 1-2 working days after received the payment.
|
|

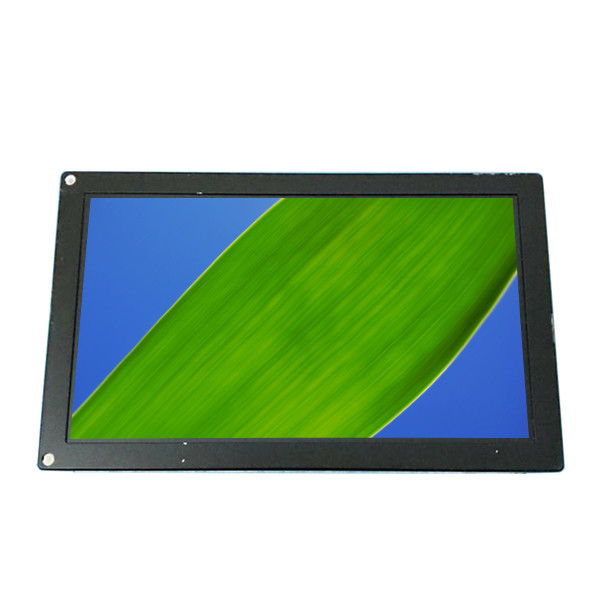

TFD58W26MW 5.8 inch 400*234 TFT-LCD Screen Panel Images |
