Brand Name : BOE
Model Number : NE140QDM-N43
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : NE140QDM-N43
Diagonal Size : 14.0"
Panel Type : Oxide TFT-LCD, LCM
Resolution : 2560(RGB)×1600, WQXGA 215PPI
Pixel Format : RGB Vertical Stripe
Active Area : 301.594(W)×188.496(H) mm
Support Color : 1.07B 100% sRGB
Backlight : WLED [11S6P] , 15K hours , With LED Driver
Used for : Laptop
Refresh Rate : 120Hz
14.0 inch NE140QDM-N43 2560*1600 LCD Screen Panel
NE140QDM-N43 LCD Panel Product details :
| Brand | BOE |
| Model P/N | NE140QDM-N43 |
| Diagonal Size | 14.0" |
| Panel Type | Oxide TFT-LCD, LCM |
| Resolution | 2560(RGB)×1600, WQXGA 215PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 301.594(W)×188.496(H) mm |
| Bezel Opening | - |
| Outline Dim. | 306.59(H)×198.7(V)×5(D) mm |
| Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 1.07B 100% sRGB |
| Light Source | WLED [11S6P] , 15K hours , With LED Driver |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Designed For | Laptop |
| Frame Rate | 120Hz |
| Touch Panel | Without |
| D-IC Detail | eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
NE140QDM-N43 Panel Shipping and Package :

NE140QDM-N43 LCD Panel FAQ :
Q: Can you test the lcd panel NE140QDM-N43 before shipping ?
A: Yes , of course , don't worry , our item was tested ok before shipping .
Q: Do you accept the sample order NE140QDM-N43 ?
A: Yes , sample order is welcome.
Q: Can you declared low value of my order NE140QDM-N43 ?
A: Yes , we can , you can tell us before shipping .
Q: How long the warranty of lcd NE140QDM-N43 ?
A: 90 days .
|
|

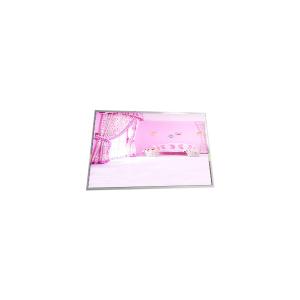

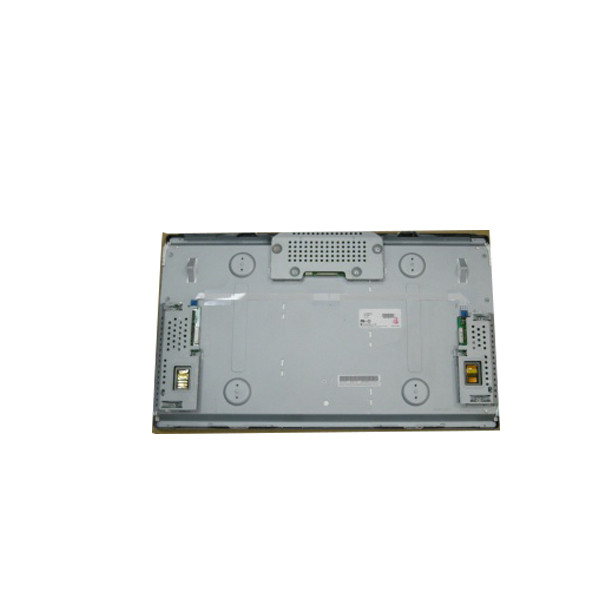

14.0 inch NE140QDM-N43 2560*1600 LCD Screen Panel Images |
